MicroSquirt, BMW's, and Turbocharging

Performance discussion for other bikes
Sandman
Member
Posts: 365
Joined: Fri Apr 22, 2016 5:42 pm
Location: Wisconsin

Re: MicroSquirt, BMW's, and Turbocharging

Post by Sandman »

Arktasian wrote:One of the squirters over on MS had a comment on engines of similar design to the Kawasaki- a Suzuki 750, that I am not at all sure applies but will mention for the fun of it.
I assume due to the Kawi having all its injectors wired together, and firing together batch style that there is not individual or "location sensitive" behaviour by the stock ecu attempting to balance out individual cylinder needs? In other words, at any given point on the stock fuel map there would be one injection duration or MS of fuel that operates each of the 4 injectors identically?
That's my take and confirms a rather easy approach towards alternate control etc.
Thoughts and comments?
Some of the cheaper MS that i've looked at like Microsquirt are more or less set up for batch injection which is the case on the turbo of course. I do not remember the specs of which MS systems have a certain amount of banks of injectors setup. Either way all we need is one injector output bank to control all of them
85 Turbo
81 KZ650
User avatar
Arktasian
Member
Posts: 42
Joined: Thu Feb 08, 2018 2:33 pm
Location: British Columbia Canada

Re: MicroSquirt, BMW's, and Turbocharging

Post by Arktasian »

My older (& cheaper) V2 version of MicroSquirt actually has two separate injector circuits that can have fuel delivery individually tailored to conditions ( multiple injectors on each). The BMW boxer engine doesn't really have imbalance issues hence I've not bothered to engage with playing with it. Now a Harley twin with the cylinders staged one in front of the other is a candidate. MS3 product allows many injector circuits.
One of the gurus over on MS forums spoke up and advised this isnt a concern or area that requires "special" tuning.
So, back to a pretty simple process/ potential
"I've done questionable things."
User avatar
dazbo
Supporter
Posts: 1707
Joined: Wed Apr 10, 2002 11:48 pm
Location: merseyside uk

Re: MicroSquirt, BMW's, and Turbocharging

Post by dazbo »

just as clarification, in an earlier post i said i thought the ignition sensors on our bikes where hall effect type ,i was mistaken , they are actually VR (variable reluctance ) sensors.
they will still interface with mega/microsquirt fairly easily . i will edit my earlier comment :thumbup
User avatar
Arktasian
Member
Posts: 42
Joined: Thu Feb 08, 2018 2:33 pm
Location: British Columbia Canada

Re: MicroSquirt, BMW's, and Turbocharging

Post by Arktasian »

dazbo wrote:just as clarification, in an earlier post i said i thought the ignition sensors on our bikes where hall effect type ,i was mistaken , they are actually VR (variable reluctance ) sensors.
they will still interface with mega/microsquirt fairly easily . i will edit my earlier comment :thumbup

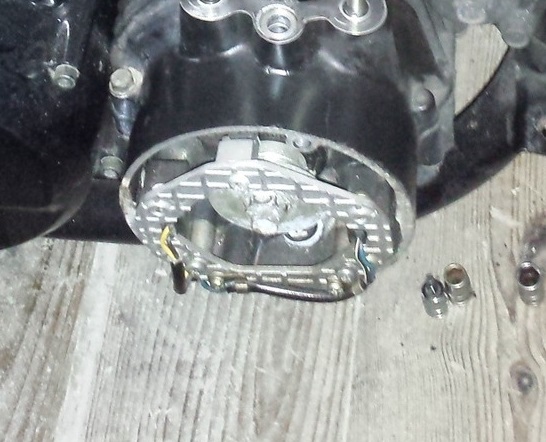

Well, that would seem to jive with the wires (2) you can just see coming from each sensor in a photo of Georges engine.
Typically a tougher signal to gain reliable sync at the lower rpm's such as cranking etc. Better sensor for the hot engine environ in my opinion and the signal can be conditioned quite easily. The "IC Ignitor" must have had some of that designed into it?
VR Pickups.jpg
"I've done questionable things."
